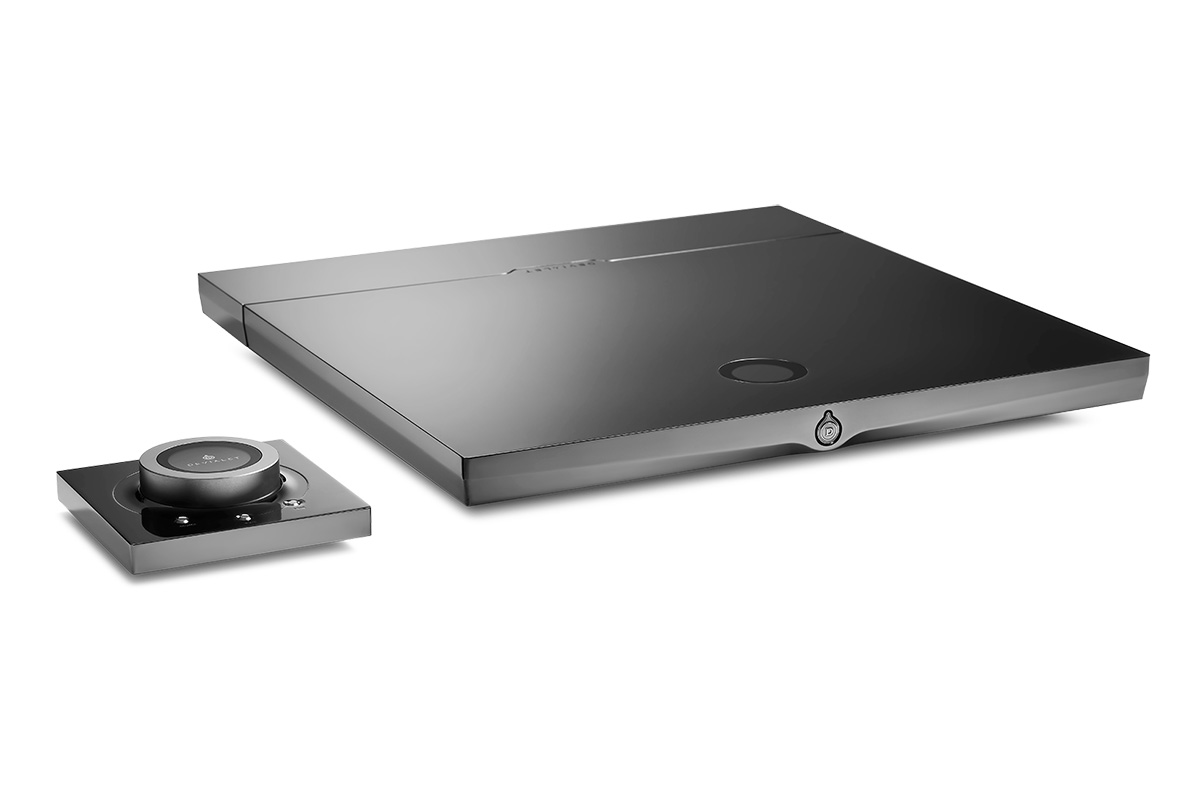

DEVIALET 220 PRO

Du burde forberede deg på et lite sjokk. Devialet forsterkerne er ekstraordinære lydenheter med en blanding av bleeding-edge teknologi og et vakkert design. Devialet er high-end og ingeniørkunst på sitt beste og leverer et unikt audiokonsept. Dette er HIGH-FIDELITY for det 21. århundre.
Expert Pro 220 yder 2x220Watt og er fantastisk i stereo og er samtidig første skrittet mot en dual-mono konfigurasjon.
Expert Pro 220 er designet for å møte de krevende behovene til audiofile med alle tilkoblingsmuligheter og et meget avanserte RIAA trinn.
Expert Pro inkluderer alle Devialet eksklusive teknologier samt alle nyvinninger utviklet for den nye Expert Pro-serien.

Is the Devialet the best gift from France since the Statue of Liberty?

- Stereotimes

To call the Devialet 200 a technologically advanced audio component is like saying Miles Davis played the trumpet.

- The Absolute Sound

Er det hi-fi-fremtiden vi ser her?

- Lyd & Bilde

Omtaler av Devialet 220 Pro

Arguably the finest looking and best sounding all-in-one system available right now, Devialet’s Expert 200 is peerless.
– 6Moons

One day everyone will own a Devialet. It’s absolutely incredible!
– CEO Warner Music (France)

To call the Devialet 200 a technologically advanced audio component is like saying Miles Davis played the trumpet.
– theAbsoluteSound

Arguably the finest looking and best sounding all-in-one system available right now, Devialet’s Expert 200 is peerless.
– 6Moon

Er det hi-fi-fremtiden vi ser her? Hvordan det enn blir vil hele hi-fi-verden følge nøye med på hva Devialet finner på fremover, det kan dere stole på.
– Lyd & Bilde

Is the Devialet the best gift from France since the Statue of Liberty? You decide. For me they are both symbols of a revolution.
-StereoTimes

Power : 2x220WRMS 6Ω
Signal-to-Noise ratio : 130dB
THD – 130W/6Ω : 0,0005% / -106dB
THD – 10W/6Ω : 0,00025% / -112dB
Output impedance : 0,001Ω
Damping factor : 8000
Bandwidth :
DC-30kHz (-0.1dB)
DC-95kHz (-3dB)
Phase :
0.4° at 20kHz
1.8° at 40kHz
Thermal distortion : Below measurement threshold
Technologies : ADHV2®, SAM®, AIR®, EVO®, DAC Magic Wire®, RAM®
Intelligence :
3 x SHARC 400 MHz DSP’s
1 x 16 MHz RISC processor
4 x 40 MHz RISC processors
1 x 64 MHz RISC processor
Synchronisation :
Up to 8 units
INPUTS / OUTPUTS
Wi-Fi :
2.4GHz 802.11 b/g/n Wi-Fi input for the Devialet AIR universal streamer
Supported formats: 16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM
Ethernet RJ45 :
RJ45 10/100 Mbps Ethernet input for the Devialet AIR universal streamer
Supported formats: 16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM
USB :
USB Audio 2.0 asynchronous input/output
Supported formats:
16-bit/44.1 kHz PCM to 32-bit/192 kHz PCM
DSD64 1bit/2.822400MHz and 1bit/3.072000MH
Supported formats:
Very low latency
Bi-directionality for digitisation of the active source
S/PDIF TOSLINK optical connector : Supported formats : DSD64 1bit/2.822400MHz and 1bit/3.072000MH
3.5mm mini-jack S/PDIF optical + RS232 connector :
Supported formats: 16-bit/44.1 kHz to 24-bit/96 kHz
Device control via the bidirectional RS232 protocol up to 115200 bauds (documentation available via the configurator)
RCA 1 & RCA 2 connector (selected via the configurator) :
1 or 2 coaxial S/PDIF digital inputs
Supported formats:
16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM
DSD64 1bit/2.822400MHz and 1bit/3.072000MHz
1 S/PDIF coaxial (RCA1) digital output
Supported formats: PCM 24bits/48kHz/96kHz/192kHz
Multi-room use and monitoring loop
Pre-amplified analogue output (optional)
Fixed or variable volume
Output level up to 4 VRMS
Stereo/mono/left/right mixing
Active filtering available
WM8740 D/A convertor operating at 24 bits/192 kHz
Compatible with subwoofer, headphone amplifier, monitoring loop
May be activated / deactivated via remote control
RCA 3 & RCA 4 connectors (selected via the configurator) :
Line-in stereo analogue input
24-bit/96 kHz or 24-bit/192 kHz sampling
T.I. PCM4202 A/D convertor
Accepts voltages up to +/- 10V
Maximum recommended level: 4 VRMS
Analog input stereo phono level
16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM
T.I. PCM4202 A/D convertor
Accepts voltages up to +/- 100mV
Maximum recommended level: 15mVRMS
Advanced conversion stage
1 or 2 coaxial S/PDIF digital inputs
Supported formats:
16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM
DSD64 1bit/2.822400MHz and 1bit/3.072000MHz
Mini-jack 3.5mm : 3.5mm mini-jack trigger connector
Speaker output :
4mm banana plugs, stripped cables or fork connectors
Adjustable from 30 WRMS to 220 WRMS via the configurator
Compatible with all speakers, from 2Ω to 16Ω
Short-circuit protection
Active filtering available
Output impedance: 0.001Ω
PHONO STAGE
Type of supported cartridges: MM/MC
MM sensitivity from 1mVRMS to 15mVRMS
MC sensitivity from 100 μVRMS to 5000 μVRMS
256 combinations for the resistive/capacitive loading of the cartridge
Stereo/mono/left/right mixing
13 equalisation curves available
Specific menu for dynamic adjustment of all these settings
PREAMPLIFIER & MAIN DAC
Patented Magic Wire Digital / Analogue Converter, D/A T.I. PCM1792
Unique high-precision MasterClock with very low jitter: 2ps rms
Conversion of all inputs into 24-bit/192 kHz
Built-in DSD / PCM conversion
SAM profile via configurator allowing the precise adaptation of the sound signal to the specifications of your speakers
Available active filtering on all analogue outputs via configurator
Volume control in increments of 0.5 dB
Volume adjustment range: -97.5 dB to +30.0 dB
Bypass/pass-thru mode available input by input
Balance adjustment
Tone control: bass +/-18 dB, treble +/-18 dB with variable frequency cut-off via configurator
OMNIDIRECTIONAL RADIO REMOTE CONTROL
Chassis carved out of a single aluminium block
Dark chrome finish
Hand polishing, unique piece
Dimensions: 114 mm x 114 mm x 34 mm (l, w, h)
Weight: 343g (without batteries)
Requires 3 AAA batteries (1.5V LR03), provided – service life of a set of batteries: 5 years
No pairing required
Ultra responsive, latency < 3ms
ELECTRICAL POWER SUPPLY
Universal 90-240Vac – 50/60Hz
Power cable provided adapted to the country
Patented single stage switching mode topology
High power level: 600W continuous, 4000W peak
High output with power factor correction (PFC)
High resiliency to hazards potentially encountered on distribution networks : brownouts, quick transients, overloads
PLC Compatible
CONTENT OF THE BOX
1 Devialet Expert 220 Pro
1 Power cable
1 User Manual
1 Warranty booklet (5 years)
1 Microfibre cloth
1 Pair of gloves
1 SD card
1 Remote Expert (3 AAA batteries LR03 1,5V provided)
